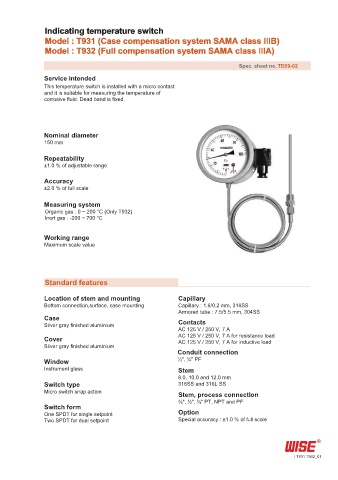

Indicating temperature switch
Model : T931 (Case compensation system SAMA class ⅢB)
Model : T932 (Full compensation system SAMA class ⅢA)

Spec. sheet no. TD09-02
Service intended
This temperature switch is installed with a micro contact
and it is suitable for measuring the temperature of
corrosive fluid. Dead band is fixed.

Nominal diameter
150 mm

Repeatability
±1.0 % of adjustable range

Accuracy
±2.0 % of full scale

Measuring system
Organic gas : 0 ~ 200 °C (Only T932)
Inert gas : -200 ~ 700 °C

Working range
Maximum scale value

Standard features

Location of stem and mounting Capillary
Bottom connection,surface, case mounting Capillary : 1.6/0.2 mm, 316SS
Armored tube : 7.5/5.5 mm, 304SS
Case
Silver gray finished aluminium Contacts
AC 125 V / 250 V, 7 A
Cover AC 125 V / 250 V, 7 A for resistance load
AC 125 V / 250 V, 7 A for inductive load
Silver gray finished aluminium
Conduit connection
Window ½", ¾" PF
Instrument glass Stem
8.0, 10.0 and 12.0 mm
Switch type 316SS and 316L SS
Micro switch snap action Stem, process connection
⅜", ½", ¾" PT, NPT and PF
Switch form
One SPDT for single setpoint Option
Two SPDT for dual setpoint Special accuracy : ±1.0 % of full scale

T931.T932_01
