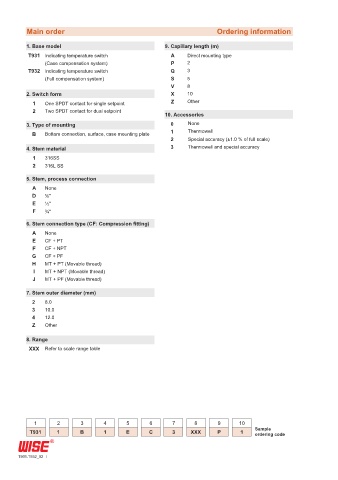

Page 162 - 2019종합카다로그_Temperature & Switch

Main order Ordering information

1. Base model 9. Capillary length (m)
T931 Indicating temperature switch A Direct mounting type
(Case compensation system) P 2
T932 Indicating temperature switch Q 3
(Full compensation system) S 5
V 8
2. Switch form X 10
1 One SPDT contact for single setpoint Z Other
2 Two SPDT contact for dual setpoint
10. Accessories
3. Type of mounting 0 None
B Bottom connection, surface, case mounting plate 1 Thermowell
2 Special accuracy (±1.0 % of full scale)
4. Stem material 3 Thermowell and special accuracy
1 316SS
2 316L SS

5. Stem, process connection
A None
D ⅜"
E ½"
F ¾"

6. Stem connection type (CF: Compression fitting)
A None
E CF + PT
F CF + NPT
G CF + PF
H MT + PT (Movable thread)
I MT + NPT (Movable thread)
J MT + PF (Movable thread)

7. Stem outer diameter (mm)
2 8.0
3 10.0
4 12.0
Z Other

8. Range
XXX Refer to scale range table

1 2 3 4 5 6 7 8 9 10
Sample
T931 1 B 1 E C 3 XXX P 1 ordering code

T931.T932_02
