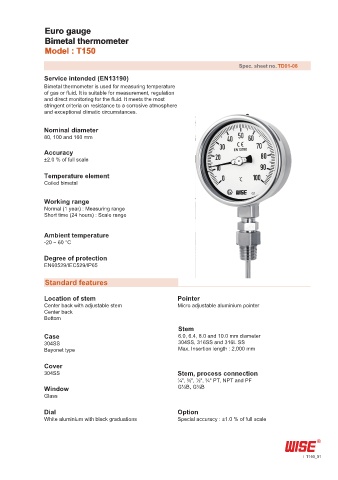

Euro gauge
Bimetal thermometer
Model : T150

Spec. sheet no. TD01-08
Service intended (EN13190)
Bimetal thermometer is used for measuring temperature
of gas or fluid. It is suitable for measurement, regulation
and direct monitoring for the fluid. It meets the most
stringent criteria on resistance to a corrosive atmosphere
and exceptional climatic circumstances.

Nominal diameter
80, 100 and 160 mm

Accuracy
±2.0 % of full scale

Temperature element
Coiled bimetal

Working range
Normal (1 year) : Measuring range
Short time (24 hours) : Scale range

Ambient temperature
-20 ~ 60 °C

Degree of protection
EN60529/IEC529/IP65

Standard features

Location of stem Pointer
Center back with adjustable stem Micro adjustable aluminium pointer
Center back
Bottom
Stem
Case 6.0, 6.4, 8.0 and 10.0 mm diameter
304SS 304SS, 316SS and 316L SS
Bayonet type Max. Insertion length : 2,000 mm

Cover
304SS Stem, process connection
¼", ⅜", ½", ¾" PT, NPT and PF
Window G½B, G¾B
Glass

Dial Option
White aluminium with black graduations Special accuracy : ±1.0 % of full scale

T150_01
