P. 225

seizing
                                1

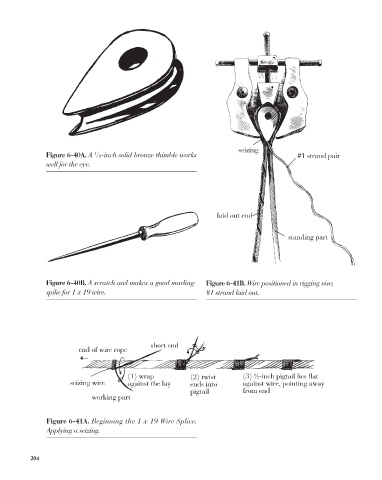

                   Figure 6-40A. A  ⁄4-inch solid bronze thimble works                  #1 strand pair
                   well for the eye.







                                                                  laid out end

                                                                                      standing part






                   Figure 6-40B. A scratch awl makes a good marling-  Figure 6-41B. Wire positioned in rigging vise;
                   spike for 1 x 19 wire.                      #1 strand laid out.







                                                short end
                            end of wire rope



                                         (1) wrap          (2) twist     (3)  ⁄2-inch pigtail lies flat
                                                                            1
                         seizing wire    against the lay   ends into     against wire, pointing away
                                                           pigtail       from end
                               working part

                   Figure 6-41A. Beginning the 1 x 19 Wire Splice.
                   Applying a seizing.



              204
