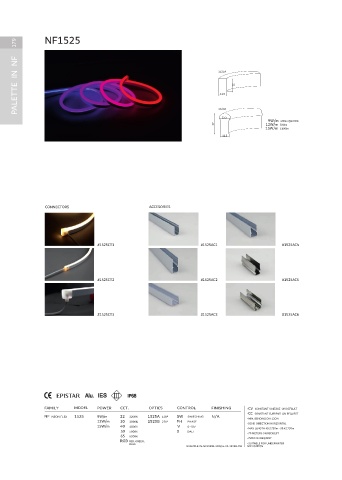

Page 200 - CATALOGUE (32)

179 NF1525 NF1526 9 9 180 9

PALETTE IN NF 1525A 21 17 1524A 16 PALETTE IN NF PALETTE IN NF PALETTE IN NF PALETTE IN NF

11.5

1525B
1525B
15.5
15.5 1524B 12
9W/m 400lm @4000K 10W/m 430lm @4000K
27 27 12W/m 590lm 13.5 12W/m 590lm
15W/m 1190lm 15W/m 1190lm
11.5

CONNECTORS ACCESORIES CONNECTORS ACCESORIES

#1525CT1 #1525AC1 #1525AC4 #1526CT1 #1526AC1 #1526AC4

#1525CT2 #1525AC2 #1525AC5 #1526CT2 #1526AC2 #1526AC5

#1525CT3 #1525AC3 #1525AC6 #1526CT3 #1526AC3 #1526AC6

Ⅲ IP68 Ⅲ IP68

FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING • CV CONSTANT VOLTAGE ON DEFAULT FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING
• CC CONSTANT CURRENT ON REQUEST • CV CONSTANT VOLTAGE ON DEFAULT
NF NEON FLEX 1525 9W/m 22 2200K 1525A 118° SW SWITCHING N/A NF NEON FLEX 1526A 10W/m 22 2200K 1526A 118° SW SWITCHING N/A
• MIN. BENDING DIA 12CM • CC CONSTANT CURRENT ON REQUEST
12W/m 30 3000K 1525B 270° PH PHASE • BEND DIRECTION HORIZONTAL 1526B 12W/m 30 3000K 1526B 270° PH PHASE • MIN. BENDING DIA 12CM
15W/m 40 4000K V 0-10V • MAX LENGTH 49.2'/20m - 98.42'/30m 15W/m 40 4000K V 0-10V • BEND DIRECTION VERTICAL
4000K
50 5000K D DALI • 70 METERS ON REQUEST 50 5000K D DALI • MAX LENGTH 33.3'/10m
65 6500K 65 6500K
• PWM ON REQUEST • PWM ON REQUEST
RGB RED, GREEN, RGB RED, GREEN,
BLUE • SUITABLE FOR UNDERWATER BLUE • SUITABLE FOR UNDERWATER
EXAMPLE: IN-NF1525B-15W/m-22-1525B-SW APPLICATION EXAMPLE: IN-NF1526A-10W/m-22-1526A-PH APPLICATION
