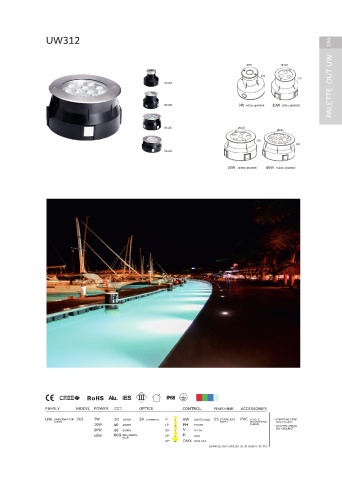

Page 205 - CATALOGUE (32)

UW312 184

PALETTE OUT UW
Ø68 Ø118

102
125
#312A

#312B 3W 400lm @4000K 10W 600lm @4000K

#312C Ø160
Ø185
101
103
#312D

20W 1200lm @4000K 60W 2400lm @4000K

Ⅲ IP68

FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES
UW UNDERWATER 312 3W 30 3000K SY SYMMETRIC 6° SW SWITCHING SS STAINLESS PVC PLASTIC • OPERATING TEMP.
LIGHT STEEL MOUNTINING 10°C TO 45°C
10W 40 4000K 15° PH PHASE SLEEVE • ASSYMETRICAL
20W 60 6000K 30° V 0-10V ON REQUEST
40W RGB RED, GREEN, 45° D DALI
BLUE
60° DMX DMX 572
EXAMPLE: OUT-UW312A-20-30-AS30-D-SS-PVC
