Page 209 - CATALOGUE (32)

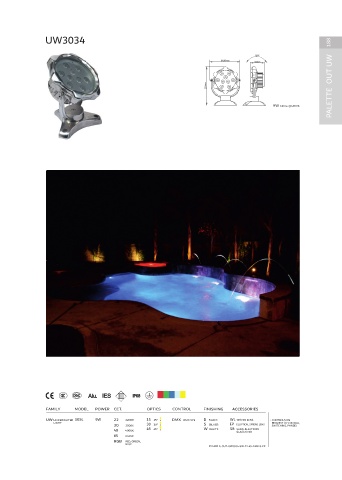

187 UW3035 UW3034 188

180° Ø160mm 180°
PALETTE OUT UW 240mm 18W 1260lm @4000K 220mm 9W 630lm @4000K PALETTE OUT UW
Ø180mm
64mm
64mm

Ⅲ IP68 Ⅲ IP68

FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES
UW UNDERWATER 3034 9W 22 2200K 15 15° DMX DMX 572 B BLACK WL WOVEN LENS • CONTROLS ON
UW UNDERWATER 3035 18W 22 2200K 15 15° DMX DMX 572 B BLACK WL WOVEN LENS • CONTROLS ON LIGHT REQUEST (0-V10, DALI,
LIGHT 30 EP REQUEST (0-V10, DALI, 30 3000K 30 30° S SILVER EP ELLIPTICAL SPREAD LENS SWITCHING, PHASE)
30 3000K 30° S SILVER ELLIPTICAL SPREAD LENS SWITCHING, PHASE) 45 SB
GLASS OVER
40 4000K 45 45° W WHITE SB SAND-BLASTERED 40 4000K 45° W WHITE SAND-BLASTERED
GLASS OVER
65 6500K 65 6500K
RGB RED, GREEN,
RGB RED, GREEN, EXAMPLE: OUT-UW3035-18W-22-15-DMX-B-SB
BLUE BLUE EXAMPLE: OUT-UW3034-9W-22-45-DMX-S-EP
