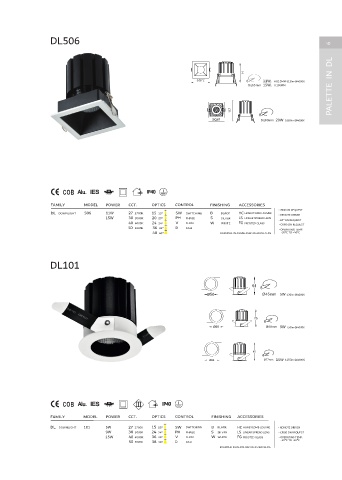

Page 27 - CATALOGUE (32)

DL506 6

PALETTE IN DL

SQ72 H 11W, H 85.5MM 913lm @4000K
Sq65mm 15W, H 100MM

117
SQ87 Sq80mm 20W 1665lm @4000K

COB IP40

FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES
• 20W ON REQUEST
DL DOWNLIGHT 506 11W 27 2700K 15 15° SW SWITCHING B BLACK HC HONEYCOMB LOUVRE
• REMOTE DRIVER
15W 30 3000K 20 20° PH PHASE S SILVER LS LINEAR SPREAD LENS
• 60° ON REQUEST
40 4000K 24 24° V 0-10V W WHITE FG FROSTED GLASS
• CRI90 ON REQUEST
50 5000K 36 36° D DALI • OPERATING TEMP.
40 40° EXAMPLE: IN-DL506-15W-30-40-PH-S-FG -30°C TO +40°C

DL101

61
Ø50 Ø45mm 5W 420lm @4000K

75
Ø65 Ø60mm 9W 750lm @4000K

95
Ø84 Ø77mm 15W 1255lm @4000K

COB Ⅲ IP40

FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES
DL DOWNLIGHT 101 5W 27 2700K 15 15° SW SWITCHING B BLACK HC HONEYCOMB LOUVRE • REMOTE DRIVER
9W 30 3000K 24 24° PH PHASE S SILVER LS LINEAR SPREAD LENS • CRI90 ON REQUEST
15W 40 4000K 36 36° V 0-10V W WHITE FG FROSTED GLASS • OPERATING TEMP.
50 5000K 38 38° D DALI -30°C TO +40°C
EXAMPLE: IN-DL101-9W-50-24-SW-W-FG
