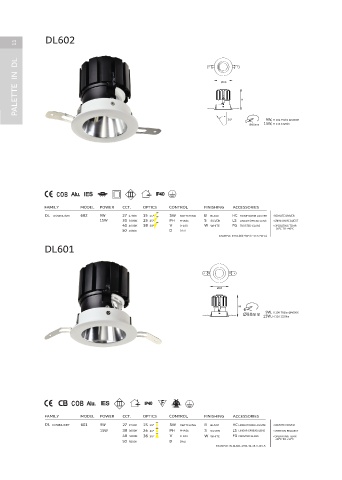

Page 32 - CATALOGUE (32)

DL602
11

PALETTE IN DL Ø90 H

30° 9W, H 104 792lm @4000K
Ø80mm 15W, H 116 1320lm

COB Ⅲ IP40

FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES
DL DOWNLIGHT 602 9W 27 2700K 15 15° SW SWITCHING B BLACK HC HONEYCOMB LOUVRE • REMOTE DRIVER
15W 30 3000K 25 25° PH PHASE S SILVER LS LINEAR SPREAD LENS • CRI90 ON REQUEST
40 4000K 38 38° V 0-10V W WHITE FG FROSTED GLASS • OPERATING TEMP.
50 5000K D DALI -30°C TO +40°C
EXAMPLE: IN-DL602-9W-27-15-D-W-LS

DL601

Ø90

H
9W, H 104 792lm @4000K
Ø80mm
15W, H 116 1320lm

COB Ⅲ IP40

FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES
DL DOWNLIGHT 601 9W 27 2700K 15 15° SW SWITCHING B BLACK HC HONEYCOMB LOUVRE • REMOTE DRIVER
15W 30 3000K 24 24° PH PHASE S SILVER LS LINEAR SPREAD LENS • CRI90 ON REQUEST
40 4000K 36 36° V 0-10V W WHITE FG FROSTED GLASS • OPERATING TEMP.
-30°C TO +40°C
50 5000K D DALI
EXAMPLE: IN-DL601-15W-30-15-V-W-LS
