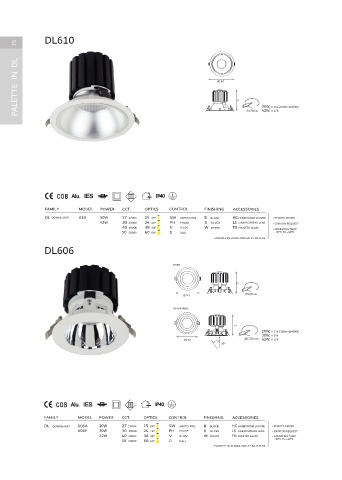

DL610
15

PALETTE IN DL Ø190 H Ø170mm 42W, H 176

30W, H 151 2640lm @4000K

COB Ⅲ IP40

FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES
DL DOWNLIGHT 610 30W 27 2700K 15 15° SW SWITCHING B BLACK HC HONEYCOMB LOUVRE • REMOTE DRIVER
42W 30 3000K 24 24° PH PHASE S SILVER LS LINEAR SPREAD LENS • CRI90 ON REQUEST
40 4000K 38 38° V 0-10V W WHITE FG FROSTED GLASS
• OPERATING TEMP.
50 5000K 60 60° D DALI -30°C TO +40°C
EXAMPLE: IN-DL610-30W-40-15-PH-S-FG
DL606

FIXED

H

Ø142 Ø130mm

ADJUSTABLE

H
20W, H 139 1585lm @4000K
30W, H 154
Ø130mm
Ø142 42W, H 179
30°

COB Ⅲ IP40

FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES
DL DOWNLIGHT 606A 20W 27 2700K 15 15° SW SWITCHING B BLACK HC HONEYCOMB LOUVRE • REMOTE DRIVER
606F 30W 30 3000K 24 24° PH PHASE S SILVER LS LINEAR SPREAD LENS • CRI90 ON REQUEST
42W 40 4000K 38 38° V 0-10V W WHITE FG FROSTED GLASS • OPERATING TEMP.
50 5000K 60 60° D DALI -30°C TO +40°C
EXAMPLE: IN-DL606A-30W-27-38-D-B-HC
