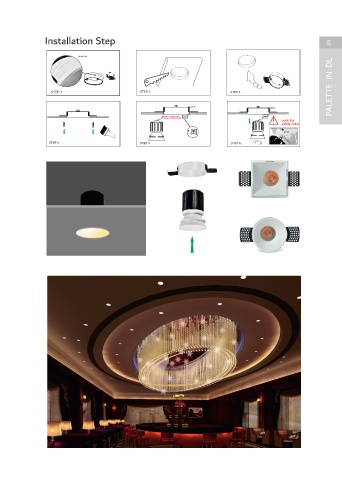

19 DL593 Installation Step 20
Height Adj.
PALETTE IN DL Ø82 H 9W, H 100 1250lm @4000K STEP 1 15mm 10mm 6mm STEP 2 STEP 3 PALETTE IN DL
75
Ø60mm
Ø60
5W 425ml @4000K
A2
Ø85mm 15W, H 115
Driver
！ Lock the
safety cable
Painting
129
Ø98 Ø100mm 20W 1700ml @4000K
STEP 4 STEP 5 STEP 6
A4
COB IP40
FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES
DL DOWNLIGHT 593 5W 27 2700K 15 15° SW SWITCHING B BLACK HC HONEYCOMB LOUVRE • REMOTE DRIVER
9W 30 3000K 24 24° PH PHASE S SILVER LS LINEAR SPREAD LENS • CRI90 ON REQUEST
15W 40 4000K 36 36° V 0-10V W WHITE FG FROSTED GLASS • OPERATING TEMP.
-30°C TO +40°C
20W 50 5000K 60 60° D DALI
EXAMPLE: IN-DL593-15W-30-24-V-S-HC
DL594
80
SQ57 SQ60mm 5W 425ml @4000K
H
9W, H 100 1250lm @4000K
SQ73 SQ75mm 15W, H 115
131
SQ98 SQ100mm 20W 1700ml @4000K
COB IP40
FAMILY MODEL POWER CCT. OPTICS CONTROL FINISHING ACCESSORIES
DL DOWNLIGHT 594 5W 27 2700K 15 15° SW SWITCHING B BLACK HC HONEYCOMB LOUVRE • REMOTE DRIVER
9W 30 3000K 24 24° PH PHASE S SILVER LS LINEAR SPREAD LENS • CRI90 ON REQUEST
15W 40 4000K 36 36° V 0-10V W WHITE FG FROSTED GLASS • OPERATING TEMP.
20W 50 5000K 60 60° D DALI -30°C TO +40°C
EXAMPLE: IN-DL594-9W-30-36-SW-B-HC
