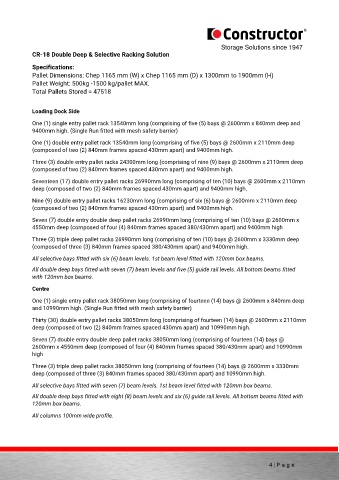

Page 4 - Constructor Quotation CQ-8000 Rev 3.0

Storage Solutions since 1947
CR-18 Double Deep & Selective Racking Solution

Specifications:
Pallet Dimensions: Chep 1165 mm (W) x Chep 1165 mm (D) x 1300mm to 1900mm (H)
Pallet Weight: 500kg -1500 kg/pallet MAX.
Total Pallets Stored = 47518

Loading Dock Side
One (1) single entry pallet rack 13540mm long (comprising of five (5) bays @ 2600mm x 840mm deep and
9400mm high. (Single Run fitted with mesh safety barrier)
One (1) double entry pallet rack 13540mm long (comprising of five (5) bays @ 2600mm x 2110mm deep
(composed of two (2) 840mm frames spaced 430mm apart) and 9400mm high.

Three (3) double entry pallet racks 24300mm long (comprising of nine (9) bays @ 2600mm x 2110mm deep
(composed of two (2) 840mm frames spaced 430mm apart) and 9400mm high.

Seventeen (17) double entry pallet racks 26990mm long (comprising of ten (10) bays @ 2600mm x 2110mm
deep (composed of two (2) 840mm frames spaced 430mm apart) and 9400mm high.
Nine (9) double entry pallet racks 16230mm long (comprising of six (6) bays @ 2600mm x 2110mm deep
(composed of two (2) 840mm frames spaced 430mm apart) and 9400mm high.

Seven (7) double entry double deep pallet racks 26990mm long (comprising of ten (10) bays @ 2600mm x
4550mm deep (composed of four (4) 840mm frames spaced 380/430mm apart) and 9400mm high

Three (3) triple deep pallet racks 26990mm long (comprising of ten (10) bays @ 2600mm x 3330mm deep
(composed of three (3) 840mm frames spaced 380/430mm apart) and 9400mm high.

All selective bays fitted with six (6) beam levels. 1st beam level fitted with 120mm box beams.
All double deep bays fitted with seven (7) beam levels and five (5) guide rail levels. All bottom beams fitted
with 120mm box beams.

Centre
One (1) single entry pallet rack 38050mm long (comprising of fourteen (14) bays @ 2600mm x 840mm deep
and 10990mm high. (Single Run fitted with mesh safety barrier)
Thirty (30) double entry pallet racks 38050mm long (comprising of fourteen (14) bays @ 2600mm x 2110mm
deep (composed of two (2) 840mm frames spaced 430mm apart) and 10990mm high.

Seven (7) double entry double deep pallet racks 38050mm long (comprising of fourteen (14) bays @
2600mm x 4550mm deep (composed of four (4) 840mm frames spaced 380/430mm apart) and 10990mm
high

Three (3) triple deep pallet racks 38050mm long (comprising of fourteen (14) bays @ 2600mm x 3330mm
deep (composed of three (3) 840mm frames spaced 380/430mm apart) and 10990mm high.

All selective bays fitted with seven (7) beam levels. 1st beam level fitted with 120mm box beams.
All double deep bays fitted with eight (8) beam levels and six (6) guide rail levels. All bottom beams fitted with
120mm box beams.
All columns 100mm wide profile.
