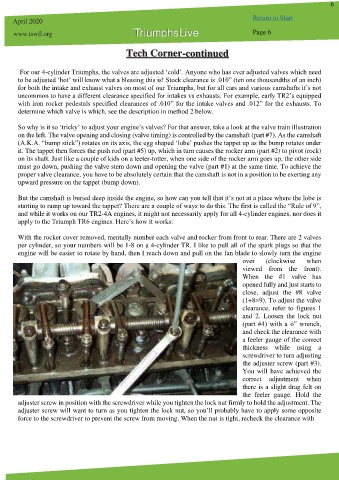

                                             Tech Corner-continued


        For our 4-cylinder Triumphs, the valves are adjusted ‘cold’. Anyone who has ever adjusted valves which need
       to be adjusted ‘hot’ will know what a blessing this is! Stock clearance is .010” (ten one thousandths of an inch)
       for both the intake and exhaust valves on most of our Triumphs, but for all cars and various camshafts it’s not
       uncommon to have a different clearance specified for intakes vs exhausts. For example, early TR2’s equipped
       with iron rocker pedestals specified clearances of .010” for the intake valves and .012” for the exhausts. To
       determine which valve is which, see the description in method 2 below.

       So why is it so ‘tricky’ to adjust your engine’s valves? For that answer, take a look at the valve train illustration
       on the left. The valve opening and closing (valve timing) is controlled by the camshaft (part #7). As the camshaft
       (A.K.A. “bump stick”) rotates on its axis, the egg shaped ‘lobe’ pushes the tappet up as the bump rotates under
       it. The tappet then forces the push rod (part #5) up, which in turn causes the rocker arm (part #2) to pivot (rock)
       on its shaft. Just like a couple of kids on a teeter-totter, when one side of the rocker arm goes up, the other side
       must go down, pushing the valve stem down and opening the valve (part #1) at the same time. To achieve the
       proper valve clearance, you have to be absolutely certain that the camshaft is not in a position to be exerting any
       upward pressure on the tappet (bump down).

       But the camshaft is buried deep inside the engine, so how can you tell that it’s not at a place where the lobe is
       starting to ramp up toward the tappet? There are a couple of ways to do this. The first is called the “Rule of 9”,
       and while it works on our TR2-4A engines, it might not necessarily apply for all 4-cylinder engines, nor does it
       apply to the Triumph TR6 engines. Here’s how it works:

       With the rocker cover removed, mentally number each valve and rocker from front to rear. There are 2 valves
       per cylinder, so your numbers will be 1-8 on a 4-cylinder TR. I like to pull all of the spark plugs so that the
       engine will be easier to rotate by hand, then I reach down and pull on the fan blade to slowly turn the engine
                                                                                      over    (clockwise     when
                                                                                      viewed  from  the  front).
                                                                                      When  the  #1  valve  has
                                                                                      opened fully and just starts to
                                                                                      close,  adjust  the  #8  valve
                                                                                      (1+8=9). To adjust the valve
                                                                                      clearance, refer to  figures 1
                                                                                      and  2.  Loosen  the  lock  nut
                                                                                      (part #4) with a ó” wrench,
                                                                                      and check the clearance with
                                                                                      a feeler gauge of the correct
                                                                                      thickness  while  using  a
                                                                                      screwdriver to turn adjusting
                                                                                      the adjuster screw (part #3).
                                                                                      You will have achieved the
                                                                                      correct  adjustment  when
                                                                                      there is a slight drag felt on
                                                                                      the  feeler  gauge.  Hold  the
       adjuster screw in position with the screwdriver while you tighten the lock nut firmly to hold the adjustment. The
       adjuster screw will want to turn as you tighten the lock nut, so you’ll probably have to apply some opposite
       force to the screwdriver to prevent the screw from moving. When the nut is tight, recheck the clearance with
