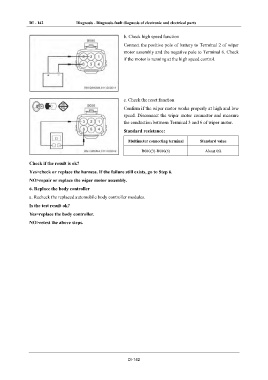

DI - 142 Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts
b. Check high speed function
Connect the positive pole of battery to Terminal 2 of wiper
motor assembly and the negative pole to Terminal 6. Check
if the motor is running at the high speed control.
c. Check the reset function
Confirm if the wiper motor works properly at high and low
speed. Disconnect the wiper motor connector and measure
the conduction between Terminal 3 and 6 of wiper motor.
Standard resistance:
Multimeter connecting terminal Standard value
B080(3)-B080(6) About 0Ω
Check if the result is ok?
Yes>check or replace the harness. If the failure still exists, go to Step 6.
NO>repair or replace the wiper motor assembly.
6. Replace the body controller
a. Recheck the replaced automobile body controller modules.
Is the test result ok?
Yes>replace the body controller.
NO>retest the above steps.
DI-142
