P. 132
03-58

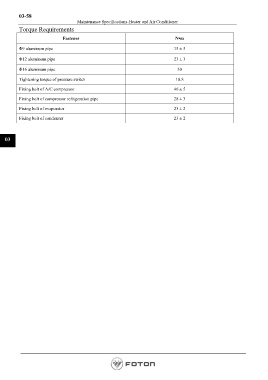

Maintenance Specifications-Heater and Air Conditioner
Torque Requirements
Fastener N•m
Φ9 aluminum pipe 15 ± 5
Φ12 aluminum pipe 23 ± 3
Φ16 aluminum pipe 30
Tightening torque of pressure switch 10.8
Fixing bolt of A/C compressor 46 ± 5
Fixing bolt of compressor refrigeration pipe 28 ± 3
Fixing bolt of evaporator 23 ± 2
Fixing bolt of condenser 23 ± 2
03
