03-53

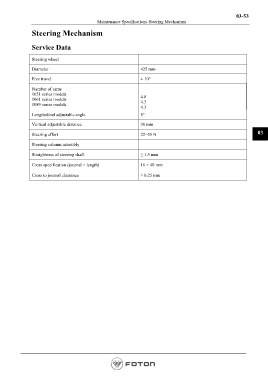

Maintenance Specifications-Steering Mechanism
Steering Mechanism
Service Data
Steering wheel
Diameter 425 mm
Free travel ± 10°
Number of turns
1051 series models
1061 series models 4.8
4.3
1089 series models
4.3
Longitudinal adjustable angle 8°
Vertical adjustable distance 30 mm
Steering effort 22~55 N 03
Steering column assembly
Straightness of steering shaft ≤ 1.5 mm
Cross specification (journal × length) 16 × 40 mm
Cross to journal clearance ≤ 0.25 mm
