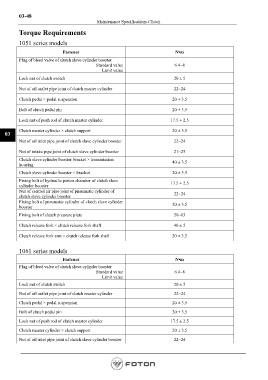

03-48
Maintenance Specifications-Clutch

Torque Requirements

1051 series models

Fastener N•m
Plug of bleed valve of clutch slave cylinder booster
Standard value 6 4~8
Limit value
Lock nut of clutch switch 20 ± 5

Nut of oil outlet pipe joint of clutch master cylinder 22~24

Clutch pedal × pedal suspension 20 ± 3.5

Bolt of clutch pedal pin 20 ± 3.5

Lock nut of push rod of clutch master cylinder 17.5 ± 2.5

Clutch master cylinder × clutch support 20 ± 3.5
03
Nut of oil inlet pipe joint of clutch slave cylinder booster 22~24

Nut of intake pipe joint of clutch slave cylinder booster 21~25

Clutch slave cylinder booster bracket × transmission 40 ± 3.5
housing
Clutch slave cylinder booster × bracket 20 ± 3.5
Fixing bolt of hydraulic piston chamber of clutch slave 17.5 ± 2.5
cylinder booster
Nut of control air pipe joint of pneumatic cylinder of
clutch slave cylinder booster 22~24
Fixing bolt of pneumatic cylinder of clutch slave cylinder 20 ± 3.5
booster
Fixing bolt of clutch pressure plate 50~63

Clutch release fork × clutch release fork shaft 40 ± 5

Clutch release fork arm × clutch release fork shaft 20 ± 3.5

1061 series models

Fastener N•m
Plug of bleed valve of clutch slave cylinder booster
Standard value 6 4~8
Limit value
Lock nut of clutch switch 20 ± 5

Nut of oil outlet pipe joint of clutch master cylinder 22~24
Clutch pedal × pedal suspension 20 ± 3.5

Bolt of clutch pedal pin 20 ± 3.5
Lock nut of push rod of clutch master cylinder 17.5 ± 2.5

Clutch master cylinder × clutch support 20 ± 3.5
Nut of oil inlet pipe joint of clutch slave cylinder booster 22~24
