03-50

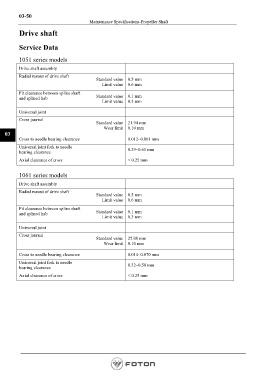

Maintenance Specifications-Propeller Shaft
Drive shaft
Service Data
1051 series models
Drive shaft assembly
Radial runout of drive shaft
Standard value 0.5 mm
Limit value 0.6 mm
Fit clearance between spline shaft
and splined hub Standard value 0.1 mm
Limit value 0.3 mm
Universal joint
Cross journal
Standard value 21.94 mm
Wear limit 0.10 mm
03
Cross to needle bearing clearance 0.012~0.061 mm
Universal joint fork to needle
bearing clearance 0.29~0.61 mm
Axial clearance of cross ≤ 0.25 mm
1061 series models
Drive shaft assembly
Radial runout of drive shaft
Standard value 0.5 mm
Limit value 0.6 mm
Fit clearance between spline shaft
and splined hub Standard value 0.1 mm
Limit value 0.3 mm
Universal joint
Cross journal
Standard value 25.00 mm
Wear limit 0.10 mm
Cross to needle bearing clearance 0.014~0.070 mm
Universal joint fork to needle
bearing clearance 0.32~0.58 mm
Axial clearance of cross ≤ 0.25 mm
