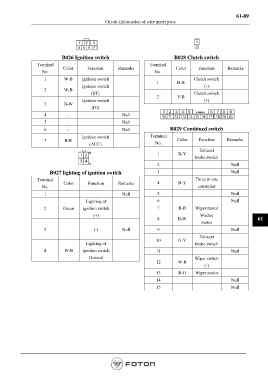

Circuit-Information of wire insert parts

B026 Ignition switch B028 Clutch switch
Terminal Terminal
Color Function Remarks Color Function Remarks
No. No.
1 W-B Ignition switch Clutch switch
1 B-B
Ignition switch (-)
2 W-B
(ST) Clutch switch
2 Y-B
Ignition switch (+)
3 B-W
(IG)
4 - Null
5 - Null
6 - Null B029 Combined switch
Ignition switch Terminal
7 B-R Color Function Remarks
(ACC) No.
Exhaust
1 B-Y
brake switch
2 Null
B027 lighting of ignition switch 3 Null
Terminal Three in one
Color Function Remarks 4 B-Y
No. controller
1 Null 5 Null
Lighting of 6 Null
2 Green ignition switch 7 B-B Wiper motor
(+) Washer
8 B-W 61
motor
3 (-) Null 9 Null
Exhaust
10 G-Y
Lighting of brake switch
4 W-B ignition switch 11 Null
Ground Wiper switch
12 W-B
(-)
13 B-O Wiper motor

14 Null
15 Null
