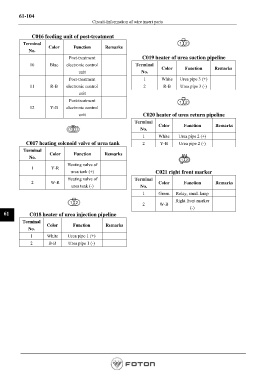

Circuit-Information of wire insert parts

C016 feeding unit of post-treatment
Terminal
Color Function Remarks
No.
Post-treatment C019 heater of urea suction pipeline
10 Blue electronic control Terminal
Color Function Remarks
unit No.
Post-treatment 1 White Urea pipe 3 (+)
11 R-B electronic control 2 R-B Urea pipe 3 (-)
unit
Post-treatment
12 Y-B electronic control
unit C020 heater of urea return pipeline
Terminal
Color Function Remarks
No.
1 White Urea pipe 2 (+)

C017 heating solenoid valve of urea tank 2 Y-B Urea pipe 2 (-)
Terminal
Color Function Remarks
No.
Heating valve of
1 Y-R
urea tank (+) C021 right front marker
Heating valve of Terminal
2 W-R Color Function Remarks
urea tank (-) No.
1 Green Relay, small lamp
Right front marker
2 W-B (-)
61 C018 heater of urea injection pipeline

Terminal
Color Function Remarks
No.
1 White Urea pipe 1 (+)
2 B-B Urea pipe 1 (-)
