61-105

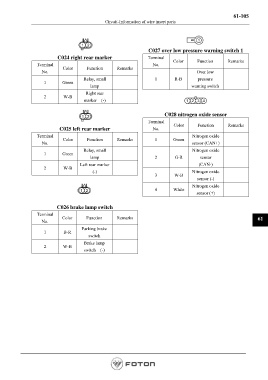

Circuit-Information of wire insert parts

C027 over low pressure warning switch 1
C024 right rear marker Terminal
Color Function Remarks
Terminal No.
Color Function Remarks
No. Over low
Relay, small 1 R-B pressure
1 Green
lamp warning switch
Right rear
2 W-B
marker (-)

C028 nitrogen oxide sensor
Terminal Color Function Remarks
C025 left rear marker No.
Terminal Nitrogen oxide
Color Function Remarks 1 Green
No. sensor (CAN+)
Relay, small Nitrogen oxide
1 Green
lamp 2 G-R sensor
Left rear marker (CAN-)
2 W-B
(-) Nitrogen oxide
3 W-B
sensor (-)
Nitrogen oxide
4 White
sensor (+)

C026 brake lamp switch

Terminal
Color Function Remarks 61
No.
Parking brake
1 B-R
switch
Brake lamp
2 W-B
switch (-)
