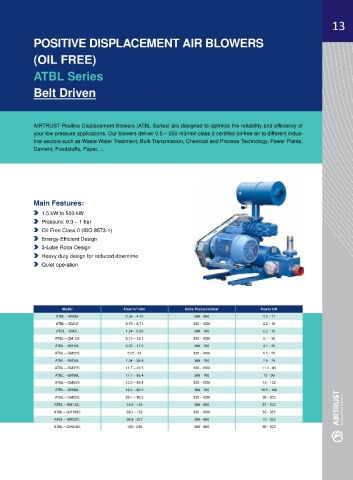

ROTARY SCREW AIR COMPRESSORS POSITIVE DISPLACEMENT AIR BLOWERS
(OIL INJECTED) (OIL FREE)
ATB SERIES ATBL Series
Belt Driven Belt Driven
Belt driven rotary screw air compressors “ATB Series” provide you with the industry’s most reliable belt drive air com-
pressor on the market. Deciding between a direct or belt driven compressors depends on your primary concerns; AIRTRUST Positive Displacement Blowers (ATBL Series) are designed to optimize the reliability and efficiency of
if you need to adjust speed and power, then a belt driven compressor will be the better option for you. As long as it your low pressure applications. Our blowers deliver 0.5 – 250 m3/min class 0 certified oil-free air to different indus-
is properly lubricated, a belt drive compressor will run more smoothly and therefore quieter. That makes it a good trial sectors such as Waste Water Treatment, Bulk Transmission, Chemical and Process Technology, Power Plants,
choice for environments in which noise levels matter. Cement, Foodstuffs, Paper,…
Main Features: Main Features:
15 kW to 160 kW 1.5 kW to 500 kW
Economic performance Pressure: 0.3 – 1 bar
Low capital investment costs Oil-Free Class 0 (ISO 8573-1)
Higher Variable Capacity Energy-Efficient Design
Highly Maintenance friendly 3-Lobe Rotor Design
Microprocessor Controller Heavy duty design for reduced downtime
Lower Noise level 76 (dB) Quiet operation
Compact Belt Series
(ATC 11/15/18) (ATB 15/160)
Model Flow m 3 //min Delta Pressurembar Power kW
ATBL – GM3S 0.58 – 4.12 300 - 900 1.5 - 11
ATBL – GM4S 0.79 – 5.71 300 - 1000 2.2 - 15
Flow (m 3 /min) Power Motor speed Noise Connection Dimensions (mm)
Model Weight (kg) ATBL – GM7L 1.24 – 5.89 300 - 700 2.2 - 15
8 bar g 10 bar g 13 bar g (kw) (RPM) (dB) (inch) L W H ATBL – GM10S 2.13 – 12.1 300 - 1000 3.1 - 30
ATB 15 2.5 2 1.3 15 3000 76 1" 1200 1100 1400 435 ATBL – GM15L 3.23 – 17.9 300 - 700 4.1 - 30
ATB 18.5 3.3 2.6 2 18.5 3000 76 1" 1200 1100 1400 450 ATBL – GM25S 5.05 - 21 300 - 1000 5.5 - 55
ATB 22 3.8 3.3 2.6 22 3000 76 1" 1200 1100 1400 485 ATBL – GM30L 7.34 – 35.4 300 - 700 7.5 - 75
ATB 30 4.8 4.3 4.3 30 3000 76 1 1/2" 1800 1300 1600 1060
ATB 37 5.8 4.7 4.5 37 3000 76 1 1/2" 1800 1300 1600 1100 ATBL – GM35S 11.7 – 40.3 300 - 1000 11.1 - 90
ATB 45 7.2 6.9 5.5 45 3000 76 1 1/2" 1800 1300 1600 1400 ATBL – GM50L 17.7 – 55.4 300 - 700 15 - 90
ATB 55 8.9 7.8 6.7 55 3000 76 1 1/2" 1800 1300 1600 1600 ATBL – GM60S 13.3 – 59.4 300 - 1000 15 - 132
ATB 75 12.7 11.3 9.2 75 3000 76 2" 3000 1700 2100 1850 ATBL – GM80L 19.3 – 85.2 300 - 700 18.5 - 160
ATB 90 14.5 13.2 11.4 90 3000 76 2" 3000 1700 2100 2600
ATB 110 19 16.8 13.8 110 3000 76 2" 3000 1700 2100 2650 ATBL – GM90S 29.1 – 90.3 300 - 1000 30 - 200
ATB 132 22 18.5 16.3 132 3000 76 3" 3000 1700 2100 3150 ATBL – GM130L 43.5 - 134 300 - 600 37 - 200
ATB 160 26.5 23.5 19.7 160 3000 76 3" 3000 1700 2100 3320 ATBL – GM150S 68.4 - 152 300 - 1000 55 - 355
ATBL – GM220L 96.8 - 227 300 - 600 75 - 355
ATBL – GM240S 100 - 246 300 - 800 90 - 500
