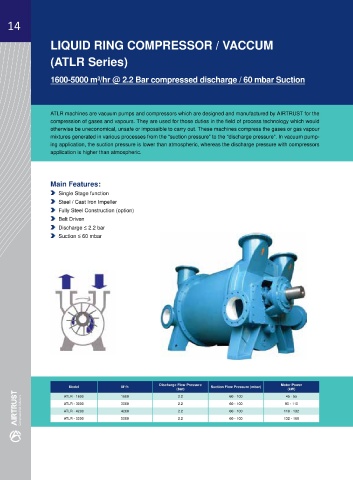

LIQUID RING COMPRESSOR / VACCUM

(ATLR Series) PARTS &

1600-5000 m /hr @ 2.2 Bar compressed discharge / 60 mbar Suction COMPONENTS
3
ORIGINAL / OEM

ATLR machines are vacuum pumps and compressors which are designed and manufactured by AIRTRUST for the
compression of gases and vapours. They are used for those duties in the field of process technology which would
otherwise be uneconomical, unsafe or impossible to carry out. These machines compress the gases or gas vapour
mixtures generated in various processes from the “suction pressure” to the “discharge pressure”. In vacuum pump-
ing application, the suction pressure is lower than atmospheric, whereas the discharge pressure with compressors
application is higher than atmospheric.

Main Features:
Single Stage function
Steel / Cast Iron Impeller
Fully Steel Construction (option)
Belt Driven
Discharge ≤ 2.2 bar
Suction ≤ 60 mbar

Discharge Flow Pressure Motor Power
Model M 3 /h Suction Flow Pressure (mbar)
(bar) (kW)
ATLR - 1600 1600 2.2 60 - 100 45 - 55
ATLR - 3000 3000 2.2 60 - 100 90 - 110
ATLR - 4200 4200 2.2 60 - 100 110 - 132
ATLR - 5000 5000 2.2 60 - 100 132 - 160
