SIEMENS SIMATIC HMI

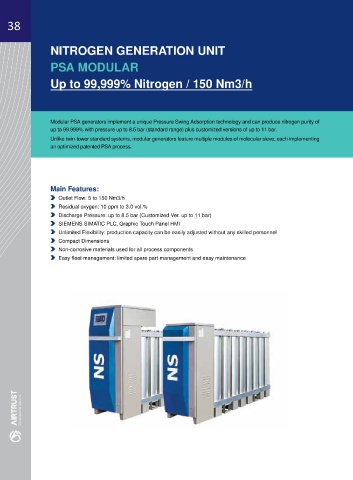

NITROGEN GENERATION UNIT Allows monitoring / control of main process parameters, displays gas purity,

PSA MODULAR flow rates, totalized gas flow, functioning hours, maintenance alerts etc.

Up to 99,999% Nitrogen / 150 Nm3/h

Modular PSA generators implement a unique Pressure Swing Adsorption technology and can produce nitrogen purity of Flow (m3/h) Dimension
up to 99.999% with pressure up to 8.5 bar (standard range) plus customized versions of up to 11 bar. Model 10 50 100 500 Pressure Weight
(kg)
(bar)
Unlike twin-tower standard systems, modular generators feature multiple modules of molecular sieve, each implementing ppm ppm ppm ppm 0.10% 0.50% 1% 2% 3% L(mm) W(mm) H(mm)
an optimized patented PSA process. NS-7 2.2 2.9 3.5 4.8 5.7 8.3 10 12.2 13.1 7 520 830 1422 256
2.6 3.5 4.2 5.9 7 10.1 11.6 14.3 15.4 10
4.4 5.8 7 9.6 11.4 16.5 19.8 24.3 26.1 7 520 955 1422 366
NS-14
5.2 7 8.3 11.8 14 20.1 23 28.4 30.7 10
6.6 8.7 10.5 14.4 17 24.6 29.6 36.3 39 7 520 1183 1422 476
NS-21
7.8 10.4 12.4 17.7 20.9 30 34.3 42.5 45.9 10
Main Features: NS-28 8.7 11.5 13.9 19.1 22.5 32.7 39.3 48.1 51.8 7 520 1141 1422 586
Outlet Flow: 5 to 150 Nm3/h 10.4 13.8 16.5 24.6 28.2 39.8 45.6 56.4 60.9 10
10.9 14.4 17.3 23.8 28.1 40.7 48.9 59.9 64.5 7 520 1639 1422 696
Residual oxygen: 10 ppm to 3.0 vol.% NS-37
12.9 17.2 21.5 30.6 35 49.5 56.7 70.1 75.7 10
Discharge Pressure: up to 8.5 bar (Customized Ver. up to 11 bar) 13 17.2 20.7 29.4 34.5 48.6 58.4 71.5 77 7 520 1867 1422 806
SIEMENS SIMATIC PLC, Graphic Touch Panel HMI NS-42 15.4 20.6 25.6 36.6 41.9 59.1 67.8 83.8 90.5 10
Unlimited Flexibility: production capacity can be easily adjusted without any skilled personnel 15.1 20.1 24.3 33 38.9 56.4 67.8 83.1 89.4 7 520 2095 1422 916
NS-49
Compact Dimensions 17.9 23.9 29.8 42.5 48.6 68.7 78.7 97.3 105.1 10
Non-corrosive materials used for all process components ND-56 17.2 22.9 27.7 37.5 44.3 64.2 77.1 94.5 101.7 7 520 2323 1422 1026
20.3 27.2 33.9 48.3 55.3 78.1 89.5 110.7 119.5 10
Easy fleet management: limited spare part management and easy maintenance
21.8 28.8 34.6 47.6 56.2 81.4 97.8 119.8 129 7
NS-74*
25.8 34.4 43 61.2 70 99 113.4 140.2 151.4 10
26 34.3 41.4 58.8 69 97.2 116.8 143 154 7
NS-84*
30.8 41.2 51.2 73.2 83.8 118.2 135.6 167.6 181 10
30.2 40.2 48.6 66 77.8 112.8 135.6 166.2 178.8 7
NS-98*
35.8 47.8 59.6 85 97.2 137.4 157.4 194.6 210.2 10
34.4 45.8 55.4 75 88.6 128.4 154.2 189 203 7
NS-112*
40.6 54.4 67.8 96.6 110.6 156.2 179 221.4 239 10
