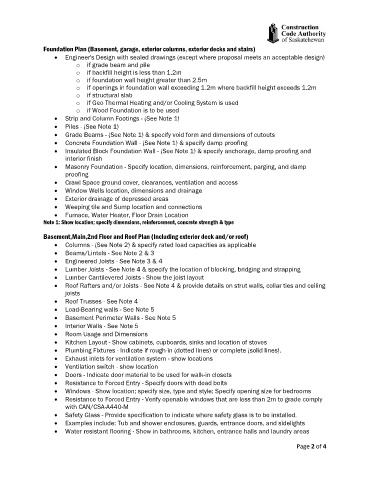

Foundation Plan (Basement, garage, exterior columns, exterior decks and stairs)
• Engineer's Design with sealed drawings (except where proposal meets an acceptable design)
o if grade beam and pile
o if backfill height is less than 1.2m
o if foundation wall height greater than 2.5m
o if openings in foundation wall exceeding 1.2m where backfill height exceeds 1.2m
o if structural slab
o if Geo Thermal Heating and/or Cooling System is used
o if Wood Foundation is to be used
• Strip and Column Footings - (See Note 1)
• Piles - (See Note 1)
• Grade Beams - (See Note 1) & specify void form and dimensions of cutouts
• Concrete Foundation Wall - (See Note 1) & specify damp proofing
• Insulated Block Foundation Wall - (See Note 1) & specify anchorage, damp proofing and
interior finish
• Masonry Foundation - Specify location, dimensions, reinforcement, parging, and damp
proofing
• Crawl Space ground cover, clearances, ventilation and access
• Window Wells location, dimensions and drainage
• Exterior drainage of depressed areas
• Weeping tile and Sump location and connections
• Furnace, Water Heater, Floor Drain Location
Note 1: Show location; specify dimensions, reinforcement, concrete strength & type

Basement,Main,2nd Floor and Roof Plan (Including exterior deck and/or roof)
• Columns - (See Note 2) & specify rated load capacities as applicable
• Beams/Lintels - See Note 2 & 3
• Engineered Joists - See Note 3 & 4
• Lumber Joists - See Note 4 & specify the location of blocking, bridging and strapping
• Lumber Cantilevered Joists - Show the joist layout
• Roof Rafters and/or Joists - See Note 4 & provide details on strut walls, collar ties and ceiling
joists
• Roof Trusses - See Note 4
• Load-Bearing walls - See Note 5
• Basement Perimeter Walls - See Note 5
• Interior Walls - See Note 5
• Room Usage and Dimensions
• Kitchen Layout - Show cabinets, cupboards, sinks and location of stoves
• Plumbing Fixtures - Indicate if rough-in (dotted lines) or complete (solid lines).
• Exhaust inlets for ventilation system - show locations
• Ventilation switch - show location
• Doors - Indicate door material to be used for walk-in closets
• Resistance to Forced Entry - Specify doors with dead bolts
• Windows - Show location; specify size, type and style; Specify opening size for bedrooms
• Resistance to Forced Entry - Verify openable windows that are less than 2m to grade comply
with CAN/CSA-A440-M
• Safety Glass - Provide specification to indicate where safety glass is to be installed.
• Examples include: Tub and shower enclosures, guards, entrance doors, and sidelights
• Water resistant flooring - Show in bathrooms, kitchen, entrance halls and laundry areas
