P. 66

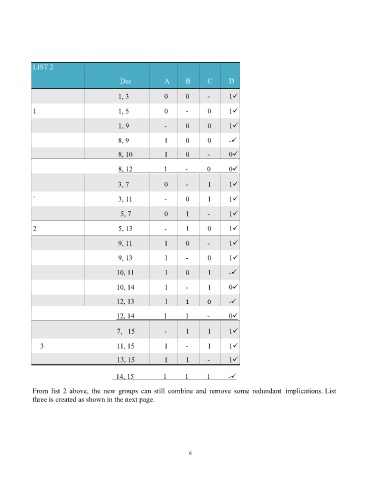

LIST 2
Dec A B C D
1, 3 0 0 - 1✓
1 1, 5 0 - 0 1✓
1, 9 - 0 0 1✓
8, 9 1 0 0 -✓
8, 10 1 0 - 0✓
8, 12 1 - 0 0✓
3, 7 0 - 1 1✓
` 3, 11 - 0 1 1✓
5, 7 0 1 - 1✓
2 5, 13 - 1 0 1✓
9, 11 1 0 - 1✓
9, 13 1 - 0 1✓
10, 11 1 0 1 -✓
10, 14 1 - 1 0✓
12, 13 1 1 0 -✓
12, 14 1 1 - 0✓
7, 15 - 1 1 1✓
3 11, 15 1 - 1 1✓
13, 15 1 1 - 1✓
14, 15 1 1 1 -✓
From list 2 above, the new groups can still combine and remove some redundant implications. List
three is created as shown in the next page.
