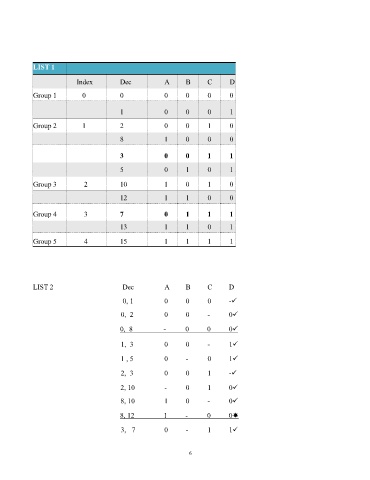

Page 69 - Digital Electronics Handout_Neat
P. 69
LIST 1
Index Dec A B C D
Group 1 0 0 0 0 0 0
1 0 0 0 1
Group 2 1 2 0 0 1 0
8 1 0 0 0
3 0 0 1 1
5 0 1 0 1
Group 3 2 10 1 0 1 0
12 1 1 0 0
Group 4 3 7 0 1 1 1
13 1 1 0 1
Group 5 4 15 1 1 1 1
LIST 2 Dec A B C D
0, 1 0 0 0 -✓
0, 2 0 0 - 0✓
0, 8 - 0 0 0✓
1, 3 0 0 - 1✓
1 , 5 0 - 0 1✓
2, 3 0 0 1 -✓
2, 10 - 0 1 0✓
8, 10 1 0 - 0✓
8, 12 1 - 0 0
3, 7 0 - 1 1✓
