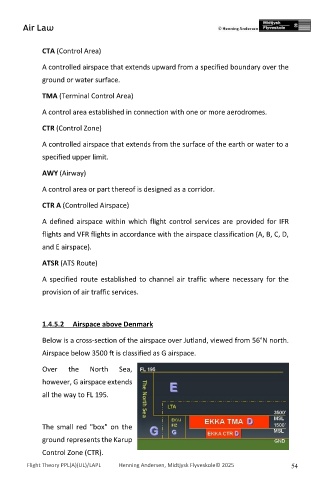

Page 54 - 2025 - Flyveteori -engelsk - 9 fag_Neat

Air Law

CTA (Control Area)

A controlled airspace that extends upward from a specified boundary over the

ground or water surface.

TMA (Terminal Control Area)

A control area established in connection with one or more aerodromes.

CTR (Control Zone)

A controlled airspace that extends from the surface of the earth or water to a

specified upper limit.

AWY (Airway)

A control area or part thereof is designed as a corridor.

CTR A (Controlled Airspace)

A defined airspace within which flight control services are provided for IFR

flights and VFR flights in accordance with the airspace classification (A, B, C, D,

and E airspace).

ATSR (ATS Route)

A specified route established to channel air traffic where necessary for the

provision of air traffic services.

1.4.5.2 Airspace above Denmark

Below is a cross-section of the airspace over Jutland, viewed from 56°N north.

Airspace below 3500 ft is classified as G airspace.

Over the North Sea,

however, G airspace extends

all the way to FL 195.

The small red "box" on the
ground represents the Karup

Control Zone (CTR).

Flight Theory PPL(A)(UL)/LAPL Henning Andersen, Midtjysk Flyveskole© 2025 54
