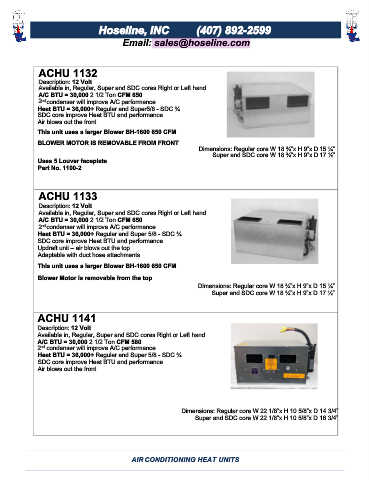

Page 17 - Complete Catalog

Hoseline, INC (407) 892-2599
Email: sales@hoseline.com

ACHU 1132
Description: 12 Volt
Available in, Regular, Super and SDC cores Right or Left hand
A/C BTU = 30,000 2 1/2 Ton CFM 650
2 condenser will improve A/C performance
nd
Heat BTU = 36,000+ Regular and Super5/8 - SDC ¾
SDC core improve Heat BTU and performance
Air blows out the front
This unit uses a larger Blower BH-1600 650 CFM
BLOWER MOTOR IS REMOVABLE FROM FRONT
Dimensions: Regular core W 18 ¾”x H 9”x D 15 ¼”
Super and SDC core W 18 ¾”x H 9”x D 17 ½”
Uses 5 Louver faceplate
Part No. 1100-2

ACHU 1133

Description: 12 Volt
Available in, Regular, Super and SDC cores Right or Left hand
A/C BTU = 30,000 2 1/2 Ton CFM 650
nd
2 condenser will improve A/C performance
Heat BTU = 36,000+ Regular and Super 5/8 - SDC ¾
SDC core improve Heat BTU and performance
Updraft unit – air blows out the top.
Adaptable with duct hose attachments.
This unit uses a larger Blower BH-1600 650 CFM
Blower Motor is removable from the top
Dimensions: Regular core W 18 ¾”x H 9”x D 15 ¼”
Super and SDC core W 18 ¾”x H 9”x D 17 ½”

ACHU 1141

Description: 12 Volt
Available in, Regular, Super and SDC cores Right or Left hand
A/C BTU = 30,000 2 1/2 Ton CFM 580
2 condenser will improve A/C performance
nd
Heat BTU = 36,000+ Regular and Super 5/8 - SDC ¾
SDC core improve Heat BTU and performance
Air blows out the front

Dimensions: Regular core W 22 1/8”x H 10 5/8”x D 14 3/4”
Super and SDC core W 22 1/8”x H 10 5/8”x D 16 3/4”

AIR CONDITIONING HEAT UNITS
