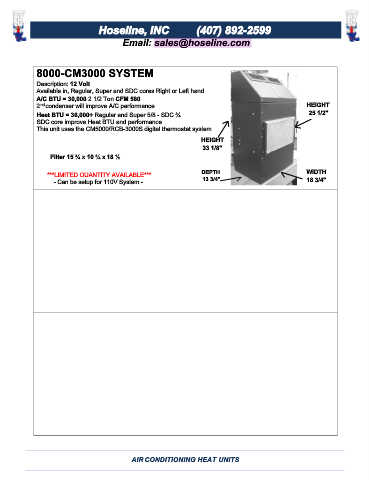

Page 20 - Complete Catalog
P. 20
Hoseline, INC (407) 892-2599
Email: sales@hoseline.com
8000-CM3000 SYSTEM
Description: 12 Volt
Available in, Regular, Super and SDC cores Right or Left hand
A/C BTU = 30,000 2 1/2 Ton CFM 580
2 condenser will improve A/C performance HEIGHT
nd
Heat BTU = 36,000+ Regular and Super 5/8 - SDC ¾ 25 1/2"
SDC core improve Heat BTU and performance
This unit uses the CM5000/RCB-3000S digital thermostat system
HEIGHT
33 1/8"
Filter 15 ¾ x 10 ¾ x 18 ½
***LIMITED QUANTITY AVAILABLE*** DEPTH WIDTH
- Can be setup for 110V System - 13 3/4" 18 3/4"
AIR CONDITIONING HEAT UNITS
