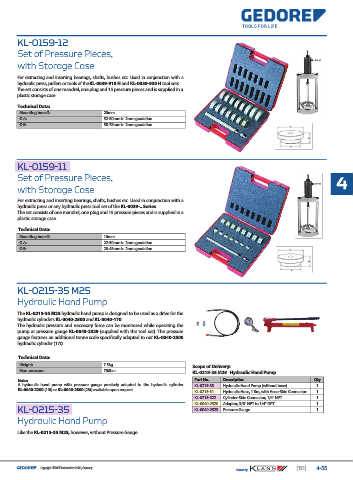

KL-0159-12 KL-0159-12
Set of Pressure Pieces,
with Storage Case

For extracting and inserting bearings, shafts, bushes etc. Used in conjunction with a
hydraulic press, pullers or tools of the KL-0039-910 H and KL-0039-930 H tool sets.
The set consists of one mandrel, one plug and 15 pressure pieces and is supplied in a
plastic storage case.
Technical Data:
Mounting bore Ø: 20mm
Ø A: 52-80mm in 2mm gradation
Ø B: 50-78mm in 2mm gradation

KL-0159-11 KL-0159-11
Set of Pressure Pieces,
with Storage Case 4

For extracting and inserting bearings, shafts, bushes etc. Used in conjunction with a
hydraulic press or any hydraulic press tool set of the KL-0039-.. Series.
The set consists of one mandrel, one plug and 15 pressure pieces and is supplied in a
plastic storage case.
Technical Data:
Mounting bore Ø: 10mm
Ø A: 22-50mm in 2mm gradation
Ø B: 20-48mm in 2mm gradation

KL-0215-35 M25 KL-0215-35 M25
Hydraulic Hand Pump

The KL-0215-35 M25 hydraulic hand pump is designed to be used as a drive for the
hydraulic cylinders KL-0040-2500 and KL-0040-170.
The hydraulic pressure and necessary force can be monitored while operating the
pump at pressure gauge KL-0040-2529 (supplied with the tool set). The pressure
gauge features an additional tonne scale specifically adapted to our KL-0040-2500
hydraulic cylinder (17t).

Technical Data:
Weight: 7.5kg
Scope of Delivery:
Max. pressure: 700bar
KL-0215-35 M25 Hydraulic Hand Pump
Note: Part No. Description Qty
A hydraulic hand pump with pressure gauge precisely adapted to the hydraulic cylinder KL-0215-33 Hydraulic Hand Pump (without hose) 1
KL-0040-2200 (10t) or KL-0040-2800 (28t) available upon request.
KL-0215-31 Hydraulic Hose, 1.8m, with Hose-Side Connector 1
KL-0215-322 Cylinder-Side Connector, 1/4" NPT 1
KL-0040-2520 Adaptor, 3/8" NPT to 1/4" NPT 1
KL-0215-35 KL-0040-2529 Pressure Gauge 1
Hydraulic Hand Pump

Like the KL-0215-35 M25, however, without Pressure Gauge.
