P. 124

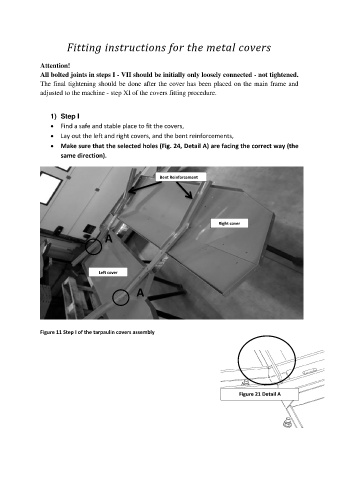

Fitting instructions for the metal covers
Attention!
All bolted joints in steps I - VII should be initially only loosely connected - not tightened.
The final tightening should be done after the cover has been placed on the main frame and
adjusted to the machine - step XI of the covers fitting procedure.
1) Step I
• Find a safe and stable place to fit the covers,
• Lay out the left and right covers, and the bent reinforcements,
• Make sure that the selected holes (Fig. 24, Detail A) are facing the correct way (the
same direction).
Bent Reinforcement
Right cover
A
Left cover
A
Figure 11 Step I of the tarpaulin covers assembly
Figure 21 Detail A
