2) STEP III
• Adjust and fix reinforcing angle bars to the left and right coves
Reinforcing angle bar short
Reinforcing angle bar
Reinforcement holder

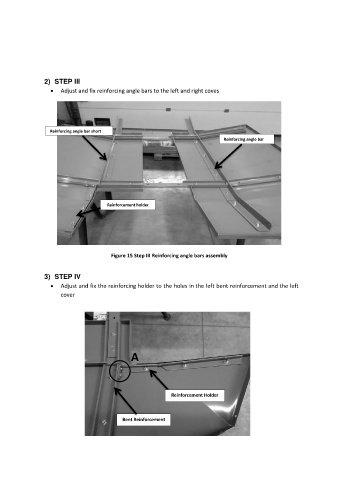

Figure 15 Step III Reinforcing angle bars assembly
3) STEP IV
• Adjust and fix the reinforcing holder to the holes in the left bent reinforcement and the left
cover
A
Reinforcement Holder
Bent Reinforcement
