P. 130
After initial attaching of the apron to the metal shield, bolt the apron together with the
barriers to the metal guard in places marked in Figure 38 (below).

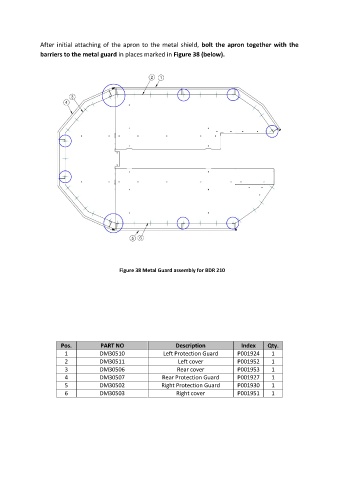

Figure 38 Metal Guard assembly for BDR 210
Pos. PART NO Description Index Qty.
1 DM30510 Left Protection Guard P001924 1
2 DM30511 Left cover P001952 1
3 DM30506 Rear cover P001953 1
4 DM30507 Rear Protection Guard P001927 1
5 DM30502 Right Protection Guard P001930 1
6 DM30503 Right cover P001951 1
