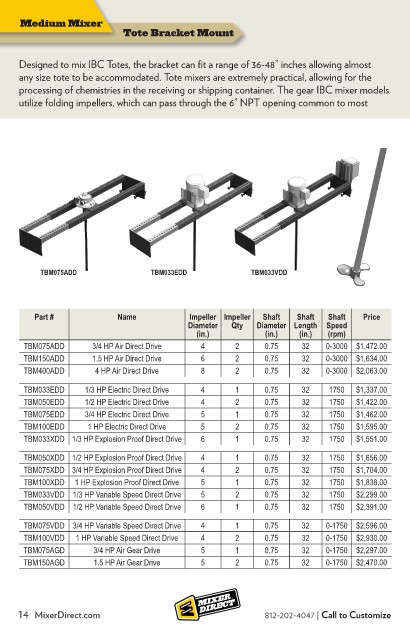

Medium Mixer
Tote Bracket Mount

Designed to mix IBC Totes, the bracket can fit a range of 36-48” inches allowing almost
any size tote to be accommodated. Tote mixers are extremely practical, allowing for the
processing of chemistries in the receiving or shipping container. The gear IBC mixer models
utilize folding impellers, which can pass through the 6” NPT opening common to most

TBM075ADD TBM033EDD TBM033VDD

Part # Name Impeller Impeller Shaft Shaft Shaft Price
Diameter Qty Diameter Length Speed
(in.) (in.) (in.) (rpm)
TBM075ADD 3/4 HP Air Direct Drive 4 2 0.75 32 0-3000 $1,472.00
TBM150ADD 1.5 HP Air Direct Drive 6 2 0.75 32 0-3000 $1,634.00
TBM400ADD 4 HP Air Direct Drive 8 2 0.75 32 0-3000 $2,063.00
TBM033EDD 1/3 HP Electric Direct Drive 4 1 0.75 32 1750 $1,337.00
TBM050EDD 1/2 HP Electric Direct Drive 4 2 0.75 32 1750 $1,422.00
TBM075EDD 3/4 HP Electric Direct Drive 5 1 0.75 32 1750 $1,462.00
TBM100EDD 1 HP Electric Direct Drive 5 2 0.75 32 1750 $1,595.00
TBM033XDD 1/3 HP Explosion Proof Direct Drive 6 1 0.75 32 1750 $1,551.00
TBM050XDD 1/2 HP Explosion Proof Direct Drive 4 1 0.75 32 1750 $1,656.00
TBM075XDD 3/4 HP Explosion Proof Direct Drive 4 2 0.75 32 1750 $1,704.00
TBM100XDD 1 HP Explosion Proof Direct Drive 5 1 0.75 32 1750 $1,838.00
TBM033VDD 1/3 HP Variable Speed Direct Drive 5 2 0.75 32 1750 $2,299.00
TBM050VDD 1/2 HP Variable Speed Direct Drive 6 1 0.75 32 1750 $2,391.00
TBM075VDD 3/4 HP Variable Speed Direct Drive 4 1 0.75 32 0-1750 $2,596.00
TBM100VDD 1 HP Variable Speed Direct Drive 4 2 0.75 32 0-1750 $2,930.00
TBM075AGD 3/4 HP Air Gear Drive 5 1 0.75 32 0-1750 $2,297.00
TBM150AGD 1.5 HP Air Gear Drive 5 2 0.75 32 0-1750 $2,470.00

14 MixerDirect.com 812-202-4047 | Call to Customize
