standard IBCs. However, this tote mixer is not just for use as a tote agitator, but any tank
where mounting on top with a bracket would be appropriate. Customization options for the
IBC mixers include longer shafts, several gear ratios, and varied impellers. Standard models
include air, electric, explosion proof motors.
For more details see www.MixerDirect.com or call 812-202-4047.

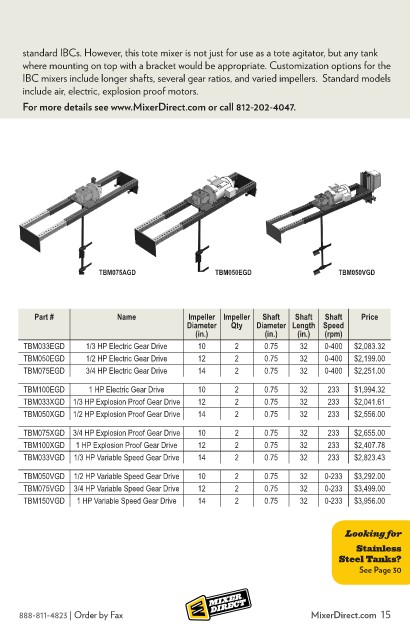

TBM075AGD TBM050EGD TBM050VGD

Part # Name Impeller Impeller Shaft Shaft Shaft Price
Diameter Qty Diameter Length Speed
(in.) (in.) (in.) (rpm)
TBM033EGD 1/3 HP Electric Gear Drive 10 2 0.75 32 0-400 $2,083.32
TBM050EGD 1/2 HP Electric Gear Drive 12 2 0.75 32 0-400 $2,199.00
TBM075EGD 3/4 HP Electric Gear Drive 14 2 0.75 32 0-400 $2,251.00
TBM100EGD 1 HP Electric Gear Drive 10 2 0.75 32 233 $1,994.32
TBM033XGD 1/3 HP Explosion Proof Gear Drive 12 2 0.75 32 233 $2,041.61
TBM050XGD 1/2 HP Explosion Proof Gear Drive 14 2 0.75 32 233 $2,556.00
TBM075XGD 3/4 HP Explosion Proof Gear Drive 10 2 0.75 32 233 $2,655.00
TBM100XGD 1 HP Explosion Proof Gear Drive 12 2 0.75 32 233 $2,407.78
TBM033VGD 1/3 HP Variable Speed Gear Drive 14 2 0.75 32 233 $2,823.43
TBM050VGD 1/2 HP Variable Speed Gear Drive 10 2 0.75 32 0-233 $3,292.00
TBM075VGD 3/4 HP Variable Speed Gear Drive 12 2 0.75 32 0-233 $3,499.00
TBM150VGD 1 HP Variable Speed Gear Drive 14 2 0.75 32 0-233 $3,956.00

Looking for
Stainless
Steel Tanks?
See Page 30

888-811-4823 | Order by Fax MixerDirect.com 15
