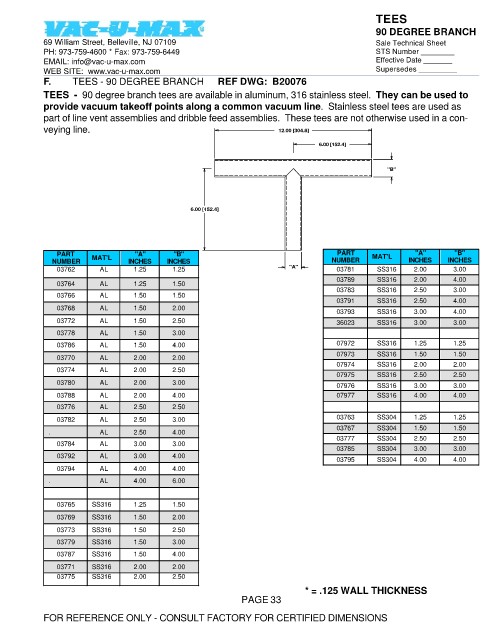

TEES
90 DEGREE BRANCH
69 William Street, Belleville, NJ 07109 Sale Technical Sheet
PH: 973-759-4600 * Fax: 973-759-6449 STS Number ________
EMAIL: info@vac-u-max.com Effective Date _______
WEB SITE: www.vac-u-max.com Supersedes _________
F. TEES - 90 DEGREE BRANCH REF DWG: B20076
TEES - 90 degree branch tees are available in aluminum, 316 stainless steel. They can be used to
provide vacuum takeoff points along a common vacuum line. Stainless steel tees are used as
part of line vent assemblies and dribble feed assemblies. These tees are not otherwise used in a con-
veying line. 12.00 [304.8]

6.00 [152.4]

"B"

6.00 [152.4]

PART MAT'L "A" "B" PART MAT'L "A" "B"
NUMBER INCHES INCHES NUMBER INCHES INCHES
03762 AL 1.25 1.25 "A" 03781 SS316 2.00 3.00
03789 SS316 2.00 4.00
03764 AL 1.25 1.50
03783 SS316 2.50 3.00
03766 AL 1.50 1.50
03791 SS316 2.50 4.00
03768 AL 1.50 2.00
03793 SS316 3.00 4.00
03772 AL 1.50 2.50 36023 SS316 3.00 3.00
03778 AL 1.50 3.00
03786 AL 1.50 4.00 07972 SS316 1.25 1.25
07973 SS316 1.50 1.50
03770 AL 2.00 2.00
07974 SS316 2.00 2.00
03774 AL 2.00 2.50
07975 SS316 2.50 2.50
03780 AL 2.00 3.00
07976 SS316 3.00 3.00
03788 AL 2.00 4.00 07977 SS316 4.00 4.00
03776 AL 2.50 2.50
03782 AL 2.50 3.00 03763 SS304 1.25 1.25
03767 SS304 1.50 1.50
. AL 2.50 4.00
03777 SS304 2.50 2.50
03784 AL 3.00 3.00
03785 SS304 3.00 3.00
03792 AL 3.00 4.00
03795 SS304 4.00 4.00
03794 AL 4.00 4.00

. AL 4.00 6.00

03765 SS316 1.25 1.50
03769 SS316 1.50 2.00
03773 SS316 1.50 2.50
03779 SS316 1.50 3.00
03787 SS316 1.50 4.00
03771 SS316 2.00 2.00
03775 SS316 2.00 2.50
* = .125 WALL THICKNESS
PAGE 33

FOR REFERENCE ONLY - CONSULT FACTORY FOR CERTIFIED DIMENSIONS
