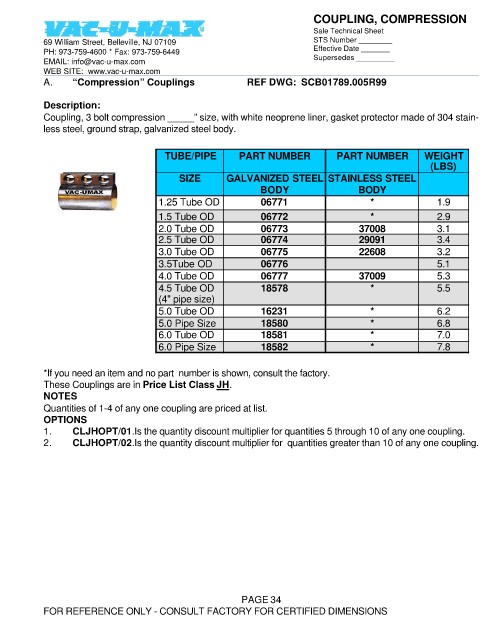

COUPLING, COMPRESSION
Sale Technical Sheet
69 William Street, Belleville, NJ 07109 STS Number ________
PH: 973-759-4600 * Fax: 973-759-6449 Effective Date _______
EMAIL: info@vac-u-max.com Supersedes _________
WEB SITE: www.vac-u-max.com
A. “Compression” Couplings REF DWG: SCB01789.005R99

Description:
Coupling, 3 bolt compression _____” size, with white neoprene liner, gasket protector made of 304 stain-
less steel, ground strap, galvanized steel body.

TUBE/PIPE PART NUMBER PART NUMBER WEIGHT
(LBS)
SIZE GALVANIZED STEEL STAINLESS STEEL
BODY BODY
1.25 Tube OD 06771 * 1.9

1.5 Tube OD 06772 * 2.9
2.0 Tube OD 06773 37008 3.1
2.5 Tube OD 06774 29091 3.4
3.0 Tube OD 06775 22608 3.2
3.5Tube OD 06776 5.1
4.0 Tube OD 06777 37009 5.3
4.5 Tube OD 18578 * 5.5
(4" pipe size)
5.0 Tube OD 16231 * 6.2
5.0 Pipe Size 18580 * 6.8
6.0 Tube OD 18581 * 7.0
6.0 Pipe Size 18582 * 7.8

*If you need an item and no part number is shown, consult the factory.
These Couplings are in Price List Class JH.
NOTES
Quantities of 1-4 of any one coupling are priced at list.
OPTIONS
1. CLJHOPT/01.Is the quantity discount multiplier for quantities 5 through 10 of any one coupling.
2. CLJHOPT/02.Is the quantity discount multiplier for quantities greater than 10 of any one coupling.

PAGE 34
FOR REFERENCE ONLY - CONSULT FACTORY FOR CERTIFIED DIMENSIONS
