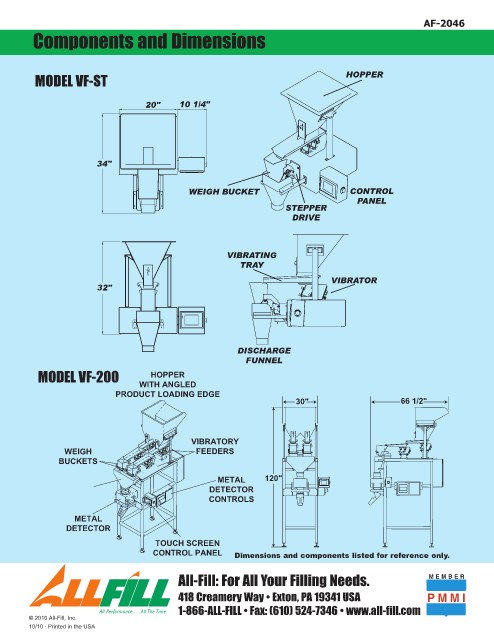

Components and Dimensions
HOPPER
MODEL VF-ST
20" 10 1/4"
34"
WEIGH BUCKET CONTROL
PANEL
STEPPER
DRIVE
VIBRATING
TRAY
VIBRATOR
32"
DISCHARGE
FUNNEL
MODEL VF-200 HOPPER
WITH ANGLED
PRODUCT LOADING EDGE
30" 66 1/2"
it ,
VIBRATORY
WEIGH G FEEDERS
P
BUCKETS E
METAL 120" IM w by A
DETECTOR
CONTROLS
METAL
DETECTOR
TOUCH SCREEN
CONTROL PANEL Dimensions and components listed for reference only.
