AF-2050

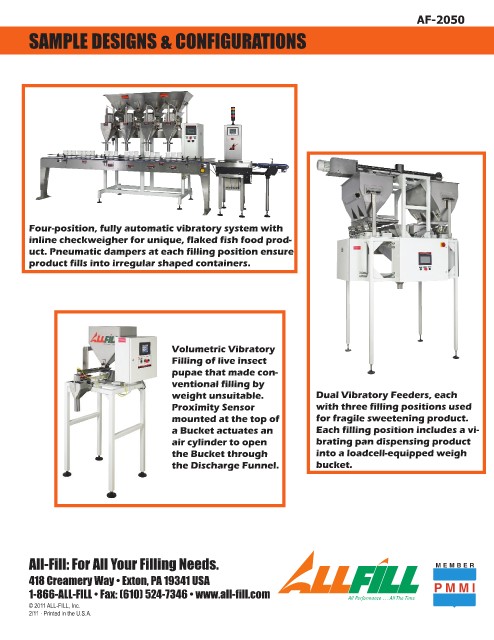

SAMPLE DESIGNS & CONFIGURATIONS

Four-position, fully automatic vibratory system with
inline checkweigher for unique, flaked fish food prod-
uct. Pneumatic dampers at each filling position ensure
product fills into irregular shaped containers.

Volumetric Vibratory
Filling of live insect
pupae that made con-
ventional filling by
weight unsuitable. Dual Vibratory Feeders, each
Proximity Sensor with three filling positions used
mounted at the top of for fragile sweetening product.
a Bucket actuates an Each filling position includes a vi-
air cylinder to open brating pan dispensing product
the Bucket through into a loadcell-equipped weigh
the Discharge Funnel. bucket.

All-Fill: For All Your Filling Needs.

418 Creamery Way • Exton, PA 19341 USA
1-866-ALL-FILL • Fax: (610) 524-7346 • www.all-fill.com
© 2011 ALL-FILL, Inc.
2/11 · Printed in the U.S.A.
