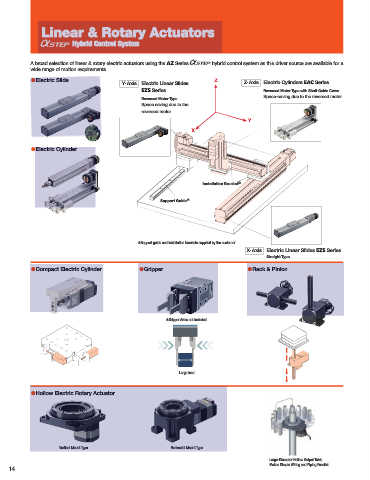

Linear & Rotary Actuators
Hybrid Control System
A broad selection of linear & rotary electric actuators using the AZ Series hybrid control system as the driver source are available for a
wide range of motion requirements.
●Electric Slide Z
Y-Axis Electric Linear Slides Z-Axis Electric Cylinders EAC Series
EZS Series Reversed Motor Type with Shaft Guide Cover
Space-saving due to the reversed motor.
Reversed Motor Type
Space saving due to the
reversed motor.
Y
X
●Electric Cylinder
Installation Bracket ✽
Support Guide ✽
✽Support guide and installation brackets supplied by the customer.
X-Axis Electric Linear Slides EZS Series
Straight Type
●Compact Electric Cylinder ●Gripper ●Rack & Pinion
✽Gripper Arms not included
Large load
●Hollow Electric Rotary Actuator
Vertical Mount Type Horizontal Mount Type
Large-Diameter Hollow Output Table
Makes Simple Wiring and Piping Possible
