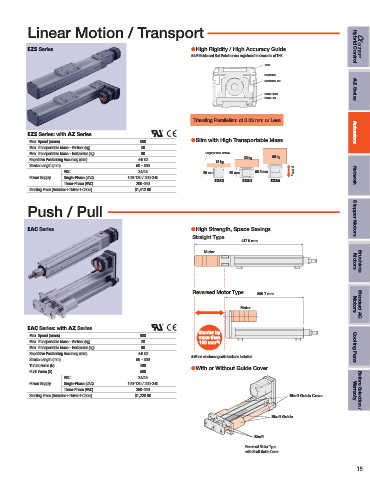

Page 15 - 2022 product guide ebook

Linear Motion / Transport

EZS Series ●High Rigidity / High Accuracy Guide Hybrid Control
✽LM Guide and Ball Retainer are registered trademarks of THK.
Table
Ball Screw
Ball Screw Nut

Guide Block AZ Series
Guide Rail

Traveling Parallelism of 0.03 mm or Less

EZS Series: with AZ Series Actuators

Max. Speed (mm/s) 800 ●Slim with High Transportable Mass
Max. Transportable Mass - Vertical (kg) 30
Height of table surfaceface
Max. Transportable Mass - Horizontal (kg) 60 Height of table sur
30 kg 60 kg
Repetitive Positioning Accuracy (mm) ±0.02 15 kg
Stroke Length (mm) 50 - 850
VDC 24/48 50 mm 50 mm 66.5 mm Compact Compact
Power Supply Single-Phase (VAC) 100-120 / 200-240 Network
EZS3 EZS4 EZS6
Three-Phase (VAC) 200-240
Starting From (Actuator+Driver+Cable) $1,412.00
Push / Pull Stepper Motors

EAC Series ●High Strength, Space Savings
Straight Type
417.9 mm

Motor Motors Brushless

Reversed Motor Type 299.7 mm

Motor Motors Standard AC

EAC Series: with AZ Series
Shorter by
Max. Speed (mm/s) 600
more than
Max. Transportable Mass - Vertical (kg) 28 100 mm ✽ !
Max. Transportable Mass - Horizontal (kg) 60 Cooling Fans
Repetitive Positioning Accuracy (mm) ±0.02
✽ When electromagnetic brake is installed
Stroke Length (mm) 50 - 300
Thrust Force (N) 400
●With or Without Guide Cover
Push Force (N) 500
VDC 24/48
Power Supply Single-Phase (VAC) 100-120 / 200-240
Three-Phase (VAC) 200-240 Warranty Before Selection /
Starting From (Actuator+Driver+Cable) $1,228.00 Shaft Guide Cover

Shaft Guide

Shaft
Reversed Motor Type
with Shaft Guide Cover
