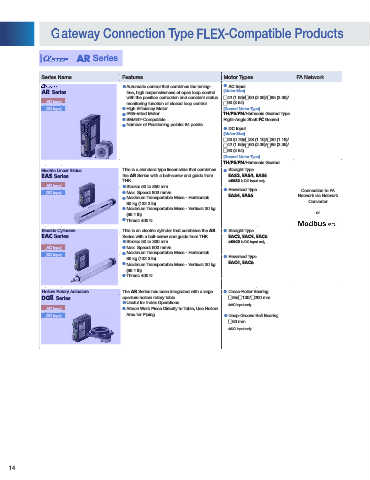

Page 14 - 553 Network Products

Gateway Connection Type FLEX-Compatible Products

■ AR Series

Series Name Features Motor Types FA Network
● Automatic control that combines the tuning- ● AC Input

AR Series free, high responsiveness of open loop control [Motor Size]
with the position correction and constant status □42 (1.65)/□60 (2.36)/□85 (3.35)/
AC Input
monitoring function of closed loop control □90 (3.54)
DC Input ● High Effi ciency Motor [Geared Motor Type]

● IP65-rated Motor TH/PS/PN/Harmonic Geared Type

● SEMI47-Compatible Right-Angle Shaft FC Geared

● Number of Positioning points: 64 points
● DC Input
[Motor Size]
□20 (0.79)/□28 (1.10)/□30 (1.18)/
□42 (1.65)/□60 (2.36)/□85 (3.35)/
□90 (3.54)
[Geared Motor Type]
TH/PS/PN/Harmonic Geared
Electric Linear Slides This is a standard type linear slide that combines ● Straight Type
EAS Series the AR Series with a ball-screw and guide from EAS2, EAS4, EAS6
THK. ✽EAS2 is DC input only
AC Input
● Stroke: 50 to 850 mm

● Reversed Type Connection to FA
DC Input ● Max. Speed: 800 mm/s

EAS4, EAS6 Network via Network
● Maximum Transportable Mass - Horizontal:

Converter
60 kg (132.3 lb)
● Maximum Transportable Mass - Vertical: 30 kg

or
(66.1 lb)
● Thrust: 400 N

Electric Cylinders This is an electric cylinder that combines the AR ● Straight Type
EAC Series Series with a ball-screw and guide from THK. EAC2, EAC4, EAC6
● Stroke: 50 to 300 mm ✽EAC2 is DC input only

AC Input ● Max. Speed: 600 mm/s

DC Input ● Maximum Transportable Mass - Horizontal: ● Reversed Type
60 kg (132.3 lb)
● Maximum Transportable Mass - Vertical: 30 kg EAC4, EAC6

(66.1 lb)
● Thrust: 400 N

Hollow Rotary Actuators The AR Series has been integrated with a large ● Cross-Roller Bearing
DG Series aperture hollow rotary table. □85/□130/□200 mm
● Useful for Index Operations ✽AC Input only

AC Input ● Attach Work Piece Directly to Table, Use Hollow

Area for Piping
DC Input ● Deep-Groove Ball Bearing
□60 mm
✽DC input only

14
