Page 253 - E-Book Product Assembly For C02 Robot
P. 253
MAGNION FURNITURE INDUSTRIES
1066.80
50.80 50.80
698.50
NO REVISION DRN CHKD DATE M.Faidz QUANTITY : 1 SET
DRAWN : DRAWING AJKT83 - 384 - 001 - 00
NO
19/5/2022
MATERIAL : NTS

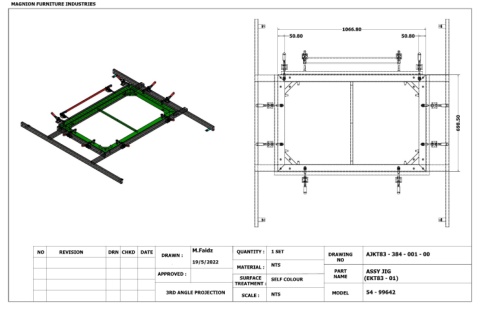

PART ASSY JIG
APPROVED :
SURFACE SELF COLOUR NAME (EKT83 - 01)
TREATMENT :
3RD ANGLE PROJECTION MODEL 54 - 99642
SCALE : NTS
