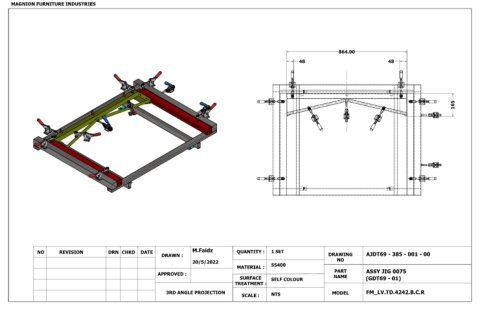

Page 257 - E-Book Product Assembly For C02 Robot
P. 257
MAGNION FURNITURE INDUSTRIES
864.00
48 48
165
NO REVISION DRN CHKD DATE M.Faidz QUANTITY : 1 SET
DRAWN : DRAWING AJDT69 - 385 - 001 - 00
NO
20/5/2022
MATERIAL : SS400
PART ASSY JIG 0075
APPROVED :
SURFACE SELF COLOUR NAME (GDT69 - 01)
TREATMENT :
3RD ANGLE PROJECTION MODEL FM_LV.TD.4242.B.C.R
SCALE : NTS
