Page 82 - E-Book Product Assembly For C02 Robot
P. 82
MAGNION FURNITURE INDUSTRIES
HOLE CODE NUMBER
1 A B DATE HOLE - A HOLE - B HOLE - C HOLE - D HOLE - E HOLE - F
J7 - 14 J7 - 23 J7 - 28 J7 - 36 J7 - 01 J7 - 08
R3
F A B
C
C
F
D
E D
E

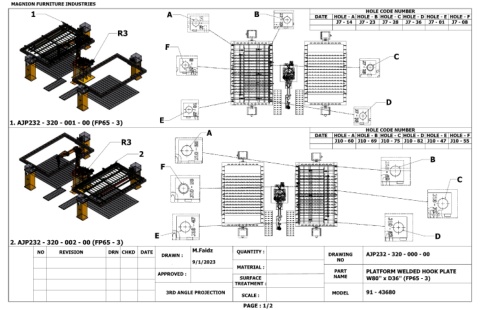

1. AJP232 - 320 - 001 - 00 (FP65 - 3)
HOLE CODE NUMBER
A DATE HOLE - A HOLE - B HOLE - C HOLE - D HOLE - E HOLE - F
R3 J10 - 60 J10 - 69 J10 - 75 J10 - 82 J10 - 47 J10 - 55
2
B
F G K
C
H
L
J M
E D
2. AJP232 - 320 - 002 - 00 (FP65 - 3)
NO REVISION DRN CHKD DATE M.Faidz QUANTITY :
DRAWN : DRAWING AJP232 - 320 - 000 - 00
NO
9/1/2023
MATERIAL :
PART PLATFORM WELDED HOOK PLATE
APPROVED :
SURFACE NAME W80'' x D36'' (FP65 - 3)
TREATMENT :
3RD ANGLE PROJECTION MODEL 91 - 43680
SCALE :
PAGE : 1/2
