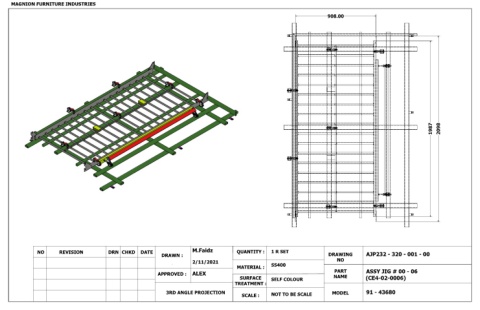

Page 84 - E-Book Product Assembly For C02 Robot
P. 84
MAGNION FURNITURE INDUSTRIES
908.00
1987 2098
NO REVISION DRN CHKD DATE M.Faidz QUANTITY : 1 R SET
DRAWN : DRAWING AJP232 - 320 - 001 - 00
NO
2/11/2021
MATERIAL : SS400
PART ASSY JIG # 00 - 06
APPROVED : ALEX
SURFACE SELF COLOUR NAME (CE4-02-0006)
TREATMENT :
3RD ANGLE PROJECTION MODEL 91 - 43680
SCALE : NOT TO BE SCALE
