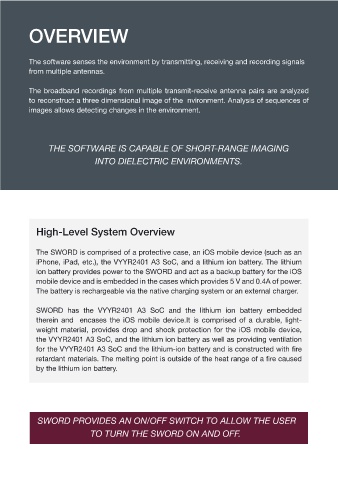

OVERVIEW

The software senses the environment by transmitting, receiving and recording signals
from multiple antennas.

The broadband recordings from multiple transmit-receive antenna pairs are analyzed
to reconstruct a three dimensional image of the nvironment. Analysis of sequences of
images allows detecting changes in the environment.

THE SOFTWARE IS CAPABLE OF SHORT-RANGE IMAGING
INTO DIELECTRIC ENVIRONMENTS.

High-Level System Overview

The SWORD is comprised of a protective case, an iOS mobile device (such as an
iPhone, iPad, etc.), the VYYR2401 A3 SoC, and a lithium ion battery. The lithium
ion battery provides power to the SWORD and act as a backup battery for the iOS
mobile device and is embedded in the cases which provides 5 V and 0.4A of power.
The battery is rechargeable via the native charging system or an external charger.

SWORD has the VYYR2401 A3 SoC and the lithium ion battery embedded
therein and encases the iOS mobile device.It is comprised of a durable, light-
weight material, provides drop and shock protection for the iOS mobile device,
the VYYR2401 A3 SoC, and the lithium ion battery as well as providing ventilation
for the VYYR2401 A3 SoC and the lithium-ion battery and is constructed with fire
retardant materials. The melting point is outside of the heat range of a fire caused
by the lithium ion battery.

SWORD PROVIDES AN ON/OFF SWITCH TO ALLOW THE USER
TO TURN THE SWORD ON AND OFF.
