P. 61
Buckets

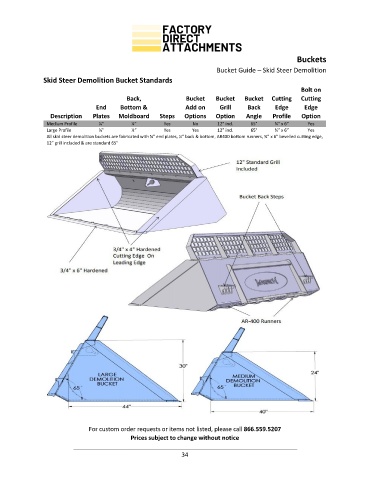

Bucket Guide – Skid Steer Demolition
Skid Steer Demolition Bucket Standards
Bolt on
Back, Bucket Bucket Bucket Cutting Cutting
End Bottom & Add on Grill Back Edge Edge
Description Plates Moldboard Steps Options Option Angle Profile Option
Medium Profile ¼” ¼” Yes No 12” incl. 65° ¾” x 6” Yes
Large Profile ¼” ¼” Yes Yes 12” incl. 65° ¾” x 6” Yes
All skid steer demolition buckets are fabricated with ¼” end plates, ¼” back & bottom, AR400 bottom runners, ¾” x 6” bevelled cutting edge,
12” grill included & are standard 65°
For custom order requests or items not listed, please call 866.559.5207
Prices subject to change without notice
34
