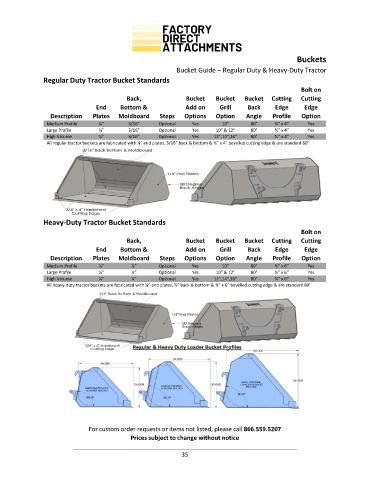

Page 62 - 2020 Catalog Full (Feb 3)

Buckets

Bucket Guide – Regular Duty & Heavy-Duty Tractor
Regular Duty Tractor Bucket Standards
Bolt on
Back, Bucket Bucket Bucket Cutting Cutting
End Bottom & Add on Grill Back Edge Edge
Description Plates Moldboard Steps Options Option Angle Profile Option
Medium Profile ¼” 3/16” Optional Yes 10” 80° ¾” x 4” Yes
Large Profile ¼” 3/16” Optional Yes 10” & 12” 80° ¾” x 4” Yes
High Volume ¼” 3/16” Optional Yes 12”,14”,16” 80° ¾” x 4” Yes
All regular tractor buckets are fabricated with ¼” end plates, 3/16” back & bottom & ¾” x 4” bevelled cutting edge & are standard 80°

Heavy-Duty Tractor Bucket Standards
Bolt on
Back, Bucket Bucket Bucket Cutting Cutting
End Bottom & Add on Grill Back Edge Edge
Description Plates Moldboard Steps Options Option Angle Profile Option
Medium Profile ¼” ¼” Optional Yes 10” 80° ¾” x 6” Yes
Large Profile ¼” ¼” Optional Yes 10” & 12” 80° ¾” x 6” Yes
High Volume ¼” ¼” Optional Yes 12”,14”,16” 80° ¾” x 6” Yes
All heavy-duty tractor buckets are fabricated with ¼” end plates, ¼” back & bottom & ¾” x 6” bevelled cutting edge & are standard 80°

For custom order requests or items not listed, please call 866.559.5207
Prices subject to change without notice

35
